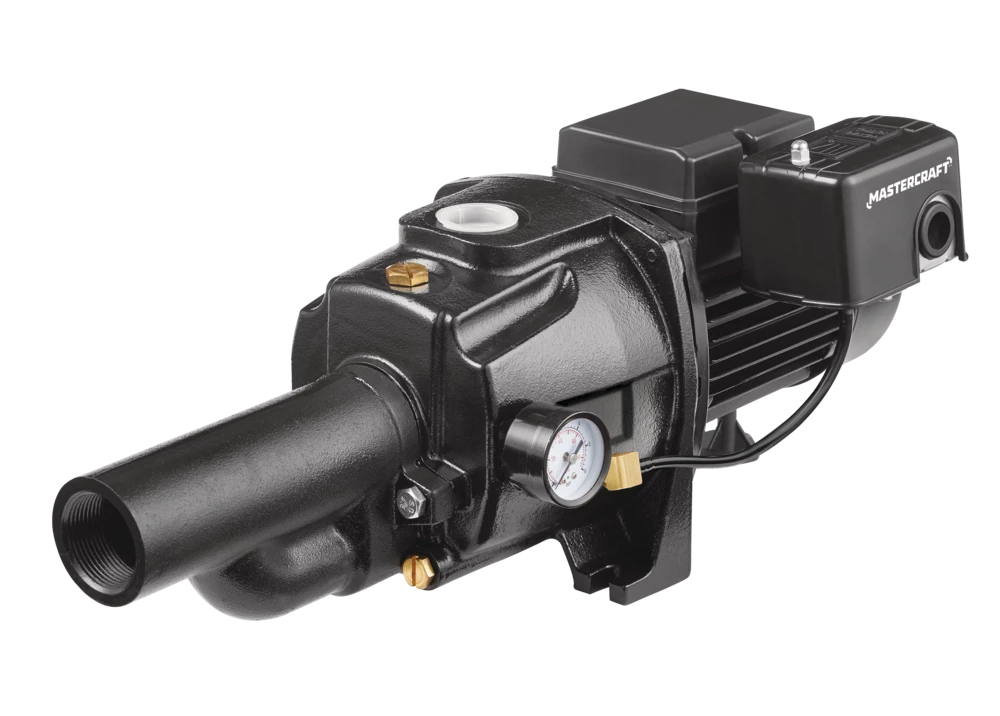

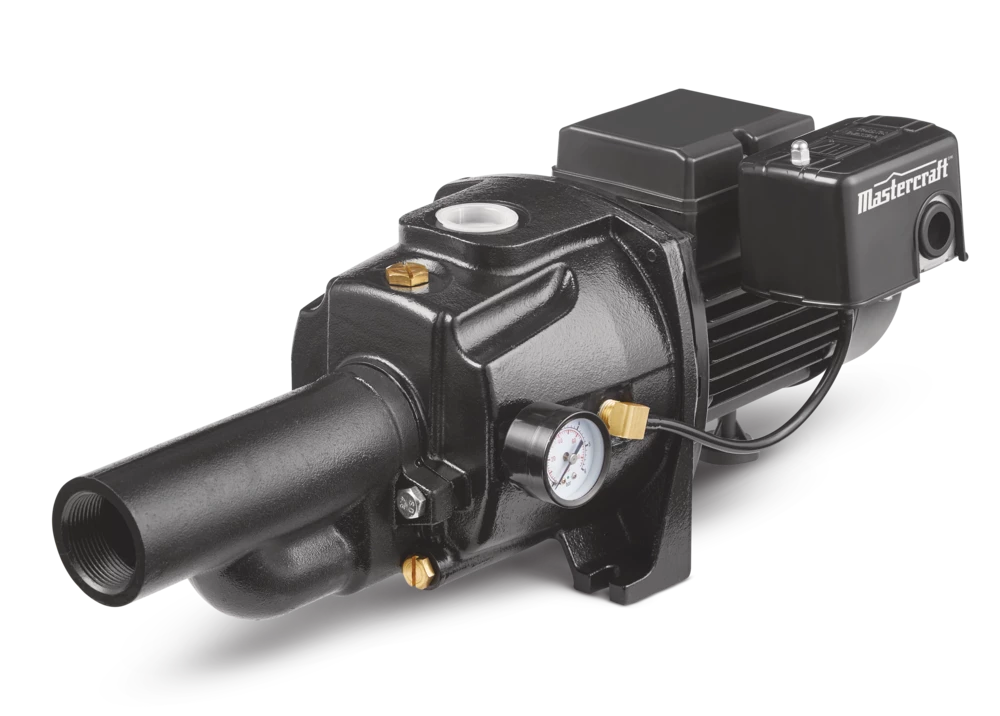

Mastercraft 1/2-HP Cast-Iron Dual-Voltage Electric Convertible Jet Pump

Features

• Mastercraft 1/2-HP Dual Voltage Cast Iron Convertible Jet Pump is designed for use with shallow wells within 90′  (27.4 m)
• Durable cast iron pump body
• Built-in automatic thermal overload protection
• Dual voltage motor (115/230V), factory set for 115V
• Pressure switch pre-set at 30-50 PSI
• 1-1/4” NPT suction and 1” NPT discharge
• Maximum Flow Rate: 310 GPH @ 5′ head
• Maximum Head: 147′

Specifications

• Accessories List: No Accessories Included
• Advanced Features: No Advanced Features
• Assembled Height (cm): 18.00 cm
• Assembled Height (ft): 0.59 ft
• Assembled Height (in): 7.09 in
• Assembled Length (cm): 33.20 cm
• Assembled Length (ft): 1.09 ft
• Assembled Length (in): 13.07 in
• Assembled Weight (kg): 12.00 kg
• Assembled Weight (lb): 26.5 lb
• Assembled Width (cm): 21.20 cm
• Assembled Width (in): 8.35 in
• Assembled Width (mm): 212.00 mm
• Batteries Required Quantity: 0
• Certifications: CSA Listed
• Flow Rate (gal/min): 89.82 gal (US)/min
• Flow Rate (l/min): 340.00 l/min
• Impeller Material: Plastic
• Maximum Operating Temperature (°C): 40.00 °C
• Maximum Operating Temperature (°F): 104.00 °F
• Outlet Valve Type: NPT
• Package Depth (cm): 39.62 cm
• Package Depth (in): 15.60 in
• Package Height (cm): 23.11 cm
• Package Height (in): 9.10 in
• Package Weight (kg): 12.00 kg
• Package Weight (lb): 26.46 lb
• Package Width (cm): 28.96 cm
• Package Width (in): 11.40 in
• Power Source(s): Electric
• Primary Material: Cast Iron
• Pump type: Well Pump
• Switch Type: Automatic
