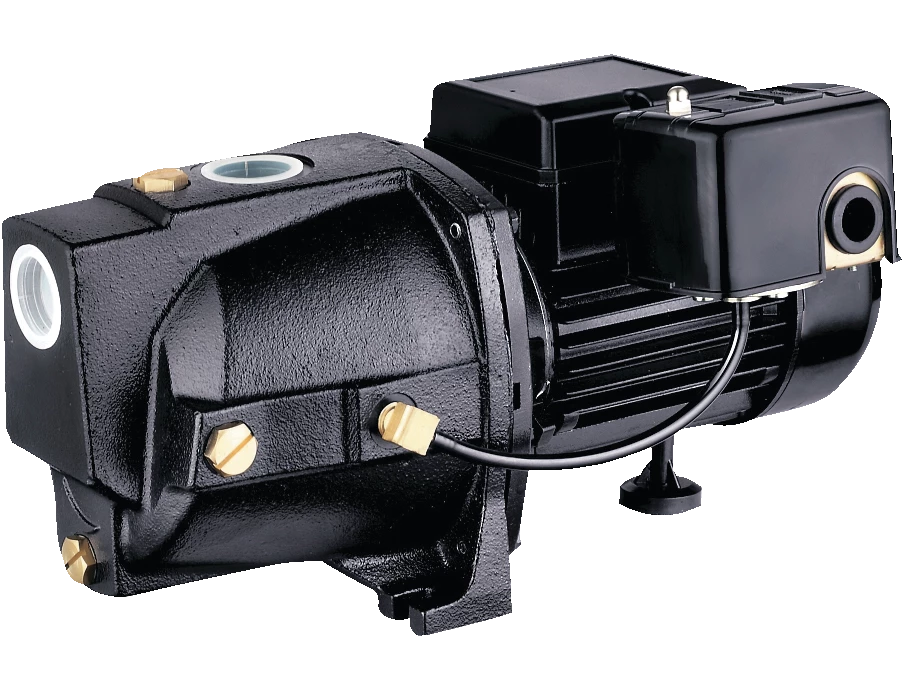

Mastercraft 1/2 HP Shallow Jet Pump

Features

• Mastercraft 1/2 HP Shallow Jet Pump is designed with a durable cast iron volute
• Built-in automatic thermal overload protector
• Pressure switch is pre-set at 30-50 PSI for automatic operation
• Dual voltage (115V/230V) motor, factory set at 115V
• For use on shallow well applications where well is 25′ (7.6 m) deep or less
• 1-1/4″ (3.2 cm) NPT suction with 1″ (2.5 cm) NPT discharge

Specifications

• Accessories List: No Accessories Included
• Advanced Features: No Advanced Features
• Assembled Height (cm): 23.37 cm
• Assembled Height (ft): 0.77 ft
• Assembled Height (in): 9.20 in
• Assembled Length (cm): 38.60 cm
• Assembled Length (ft): 1.27 ft
• Assembled Length (in): 15.20 in
• Assembled Weight (kg): 8.71 kg
• Assembled Weight (lb): 19.2 lb
• Assembled Width (cm): 26.42 cm
• Assembled Width (in): 10.40 in
• Assembled Width (mm): 264.16 mm
• Batteries Required Quantity: 0
• Certifications: CSA Listed
• Flow Rate (gal/min): 6.50 gal (US)/min
• Flow Rate (l/min): 24.60 l/min
• Impeller Material: Thermoplastic
• Maximum Operating Temperature (°C): 40.00 °C
• Maximum Operating Temperature (°F): 104.00 °F
• Outlet Valve Type: NPT
• Package Depth (cm): 38.61 cm
• Package Depth (in): 15.20 in
• Package Height (cm): 23.37 cm
• Package Height (in): 9.20 in
• Package Weight (kg): 8.71 kg
• Package Weight (lb): 19.20 lb
• Package Width (cm): 26.42 cm
• Package Width (in): 10.40 in
• Power Source(s): Electric
• Primary Material: Cast Iron
• Pump type: Well Pump
• Switch Type: Electric
