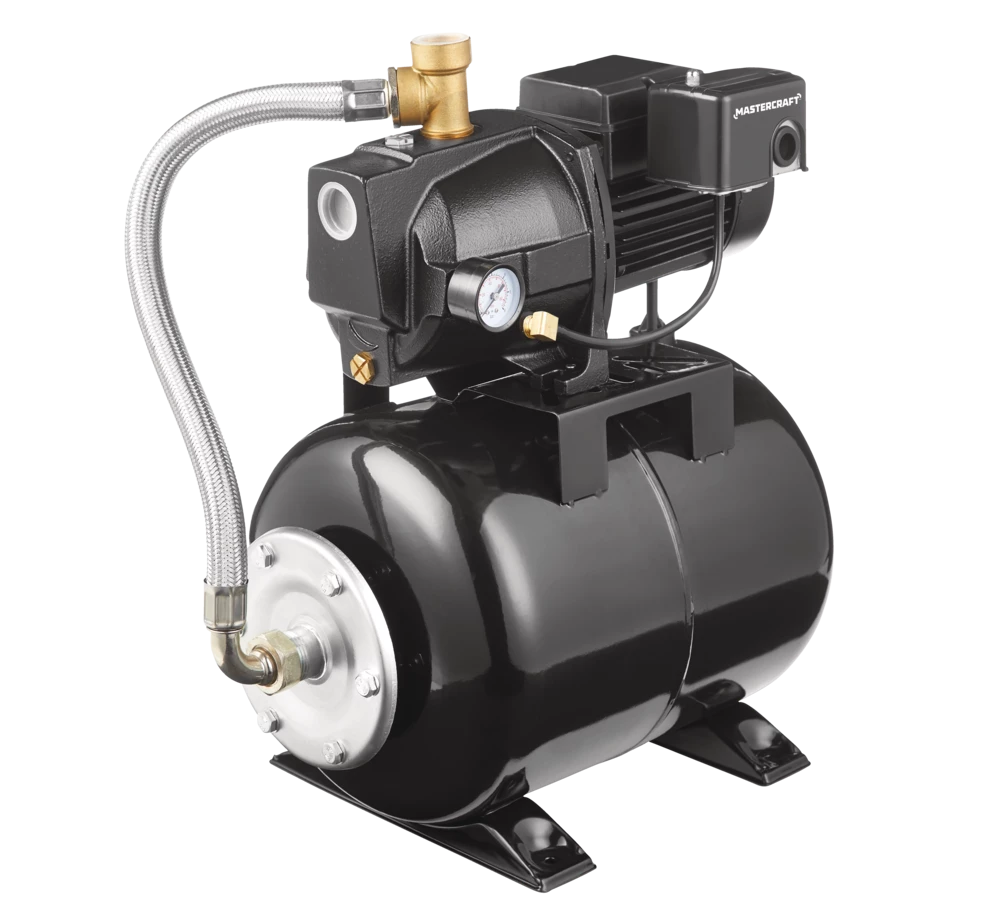

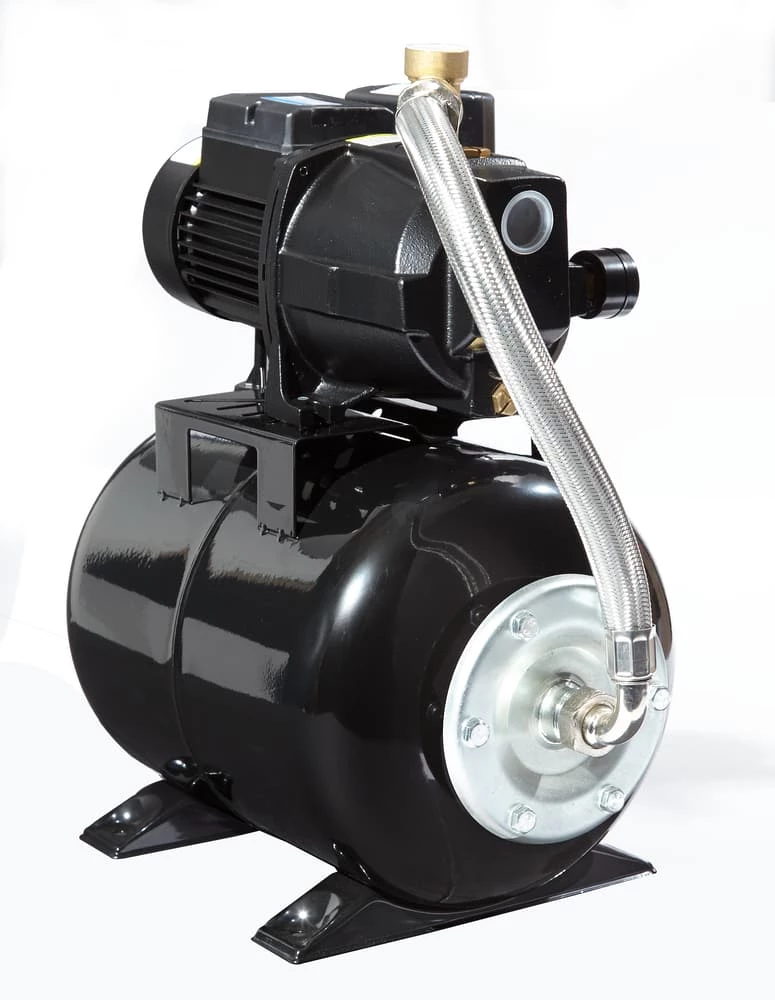

Mastercraft 1/2-HP Shallow-Well Electric Jet Pump

Features

• Mastercraft 1/2-HP Shallow Well Jet Pump is designed for use on shallow well applications with water levels up to 25′ (7.6 m)
• Durable cast iron pump body
• Built-in thermal overload protection
• Fully automatic water supply
• Dedicated priming port for volute filling
• Pressure switch pre-set at 30-50 PSI
• 1-1/4” NPT suction and 1” NPT discharge
• Tank Capacity: 22.7 L (6 US gal)
• Maximum Flow Rate:391 GPH @ 5′ head
• Maximum Head: 147′

Specifications

• Accessories List: No Accessories Included
• Advanced Features: No Advanced Features
• Assembled Height (cm): 52.40 cm
• Assembled Height (ft): 1.72 ft
• Assembled Height (in): 20.63 in
• Assembled Length (cm): 52.90 cm
• Assembled Length (ft): 1.74 ft
• Assembled Length (in): 20.83 in
• Assembled Weight (kg): 14.20 kg
• Assembled Weight (lb): 31.3 lb
• Assembled Width (cm): 27.00 cm
• Assembled Width (in): 10.63 in
• Assembled Width (mm): 270.00 mm
• Batteries Required Quantity: 0
• Certifications: CSA Listed
• Flow Rate (gal/min): 103.03 gal (US)/min
• Flow Rate (l/min): 390.00 l/min
• Impeller Material: Plastic
• Maximum Operating Temperature (°C): 40.00 °C
• Maximum Operating Temperature (°F): 104.00 °F
• Outlet Valve Type: NPT
• Package Depth (cm): 38.10 cm
• Package Depth (in): 15.00 in
• Package Height (cm): 21.84 cm
• Package Height (in): 8.60 in
• Package Weight (kg): 16.80 kg
• Package Weight (lb): 37.04 lb
• Package Width (cm): 25.90 cm
• Package Width (in): 10.20 in
• Power Source(s): Electric
• Primary Material: Cast Iron
• Pump type: Well Pump
• Switch Type: Automatic
