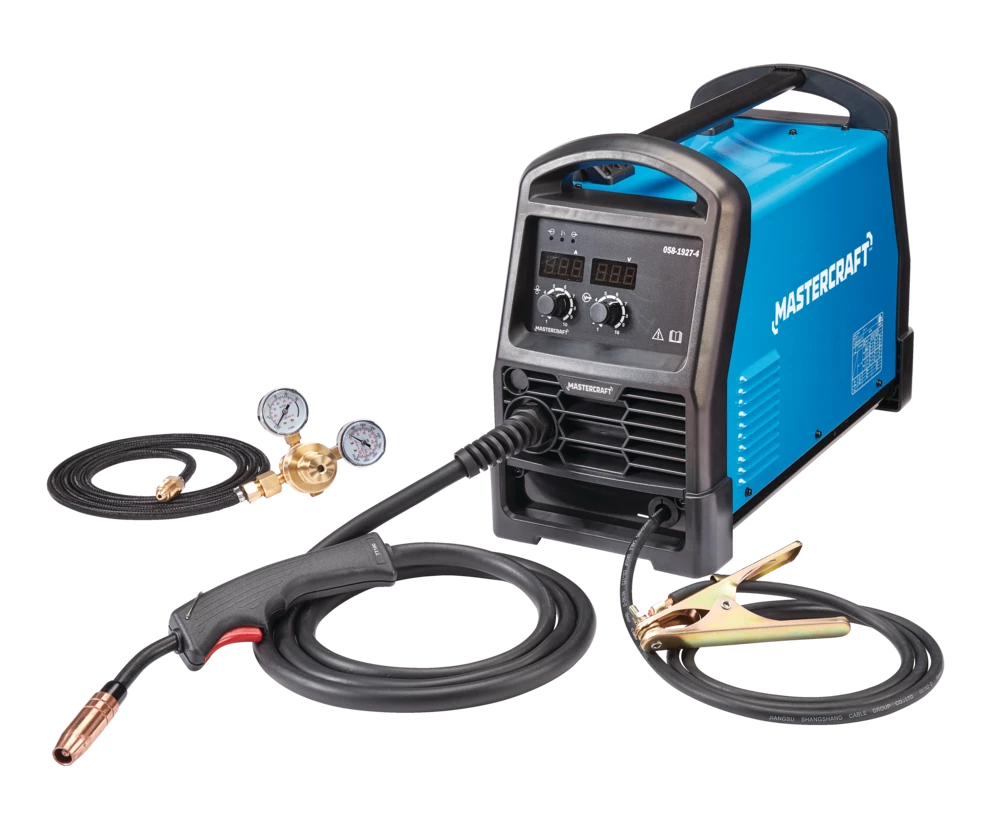

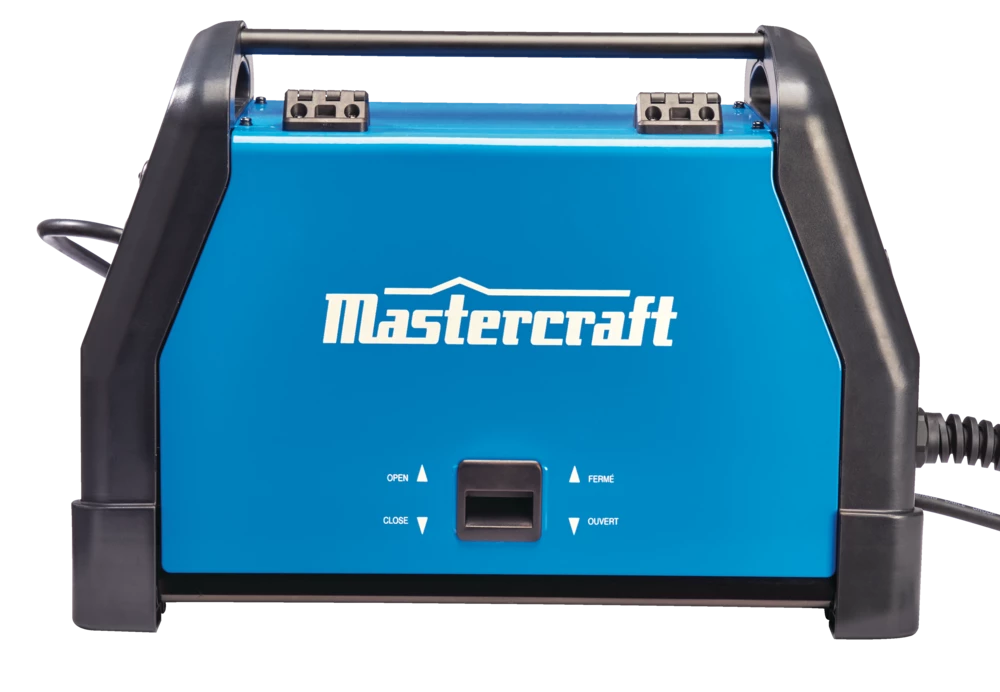

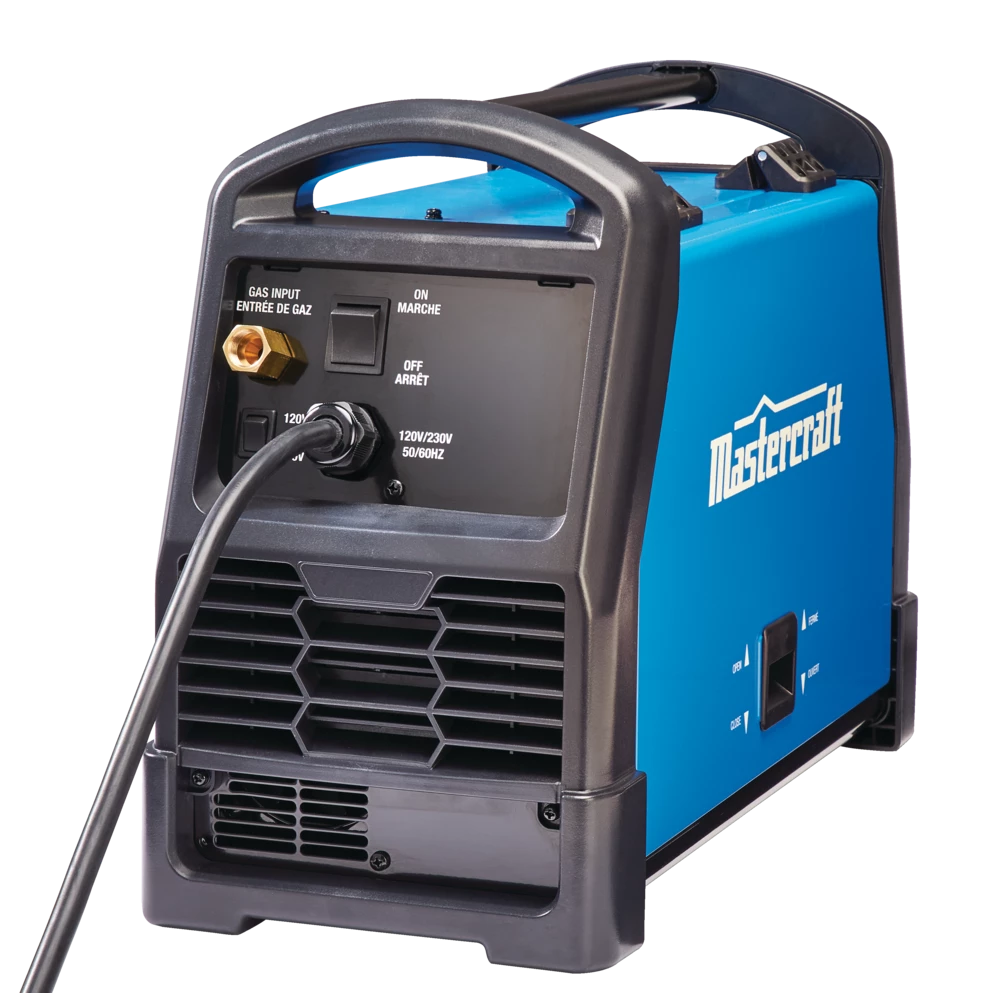

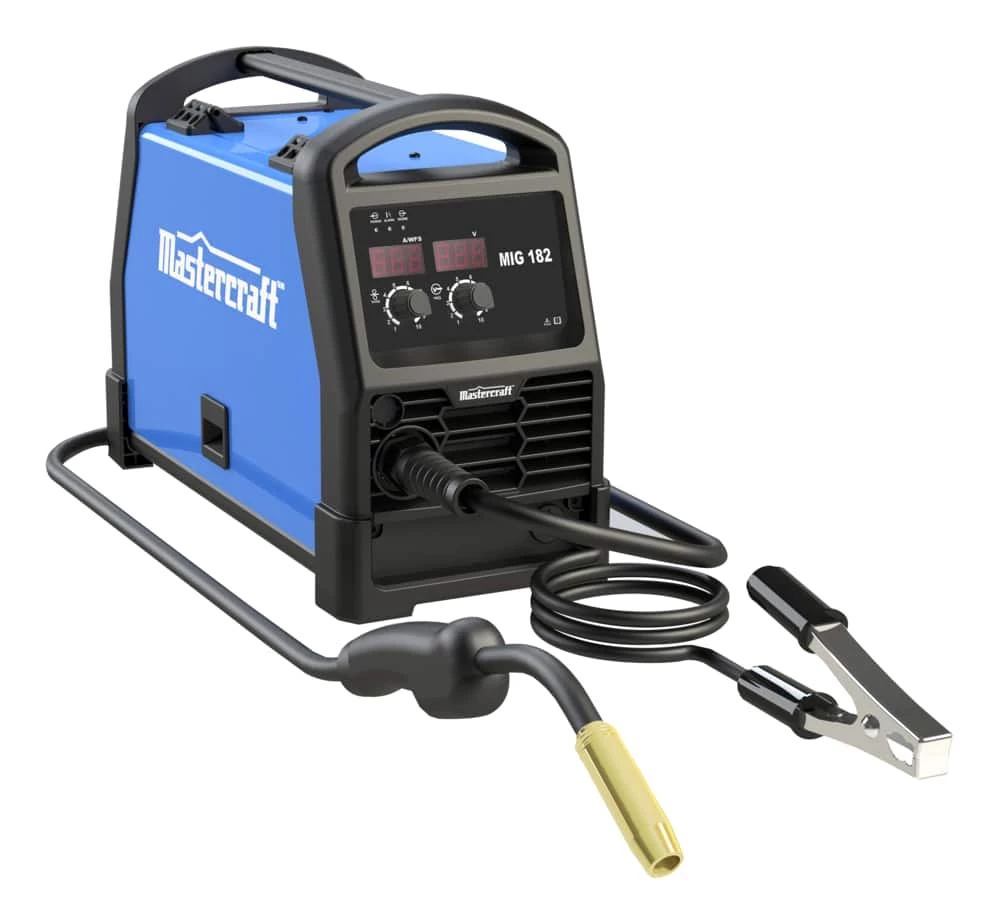

Mastercraft 115V/230V MIG 180i Inverter Welder

Features

• Mastercraft MIG 180i Inverter Welder combines versatility of MIG and Flux Core welding with lightweight inverter technology and a compact design for added convenience
• Dual Voltage Technology works with both 115V and 230V input (1 Phase)
• DC power creates a smooth, stable weld arc
• Infinite wire speed and voltage control lets you adjust the output to your needs
• Built with thermal overload protection
• Perfect for use in the workshop, in the field or at home
• Can use 0.030″, 0.035″ flux-cored wire and 0.023″, 0.030″, 0.035″ MIG wire
• Duty cycle: 40% at 90A (115V), 20% at 160A (230V)
• Weld metal thickness: 18 gauge-3/8″ (1.2-9.5mm)
• Includes: Mastercraft Inverter MIG 180i Welder, 6′ (1.8 m) grounding cable and clamp, 6′ (1.8 m) MIG/Flux core torch, 6′ (1.8 m) gas hose, gas regulator, 2′ (0.6 m) 15A plug adaptor, contact tip (0.030″) and drive roller (0.023″-0.030″/0.035″)

Specifications

• Accessories List: Nozzles, Other, Tips, Torch
• Advanced Features: Continuous Operation, Versatile welding range
• Assembled Height (cm): 45.00 cm
• Assembled Height (ft): 1.48 ft
• Assembled Height (in): 17.72 in
• Assembled Length (cm): 32.00 cm
• Assembled Length (ft): 1.05 ft
• Assembled Length (in): 12.60 in
• Assembled Weight (kg): 17.50 kg
• Assembled Weight (lb): 38.58 lb
• Assembled Width (cm): 60.00 cm
• Assembled Width (ft): 1.97 ft
• Assembled Width (in): 23.62206 in
• Assembled Width (mm): 600.00 mm
• Certifications: CSA Listed
• Display Type: Digital
• Duty Cycle: 40
• Input Hertz (Hz): 60 Hz
• Input Phase: 1
• Input Voltage (V): 230 V
• Maximum Temperature (°C): 55.00 °C
• Maximum Temperature (°F): 131.00 °F
• Maximum Weldable Thickness (in): 0.25 in
• Maximum Weldable Thickness (mm): 6.30 mm
• Minimum Temperature (°C): -20.00 °C
• Minimum Temperature (°F): -4.00 °F
• Minimum Weldable Thickness (in): 0.02 in
• Minimum Weldable Thickness (mm): 0.60 mm
• Number of Pieces: 1
• Output Amperage (amps): 160 A
• Output Voltage (V): 22 V
• Package Depth (cm): 60.00 cm
• Package Depth (in): 23.62 in
• Package Height (cm): 45.00 cm
• Package Height (in): 17.72 in
• Package Weight (kg): 17.50 kg
• Package Weight (lb): 38.58 lb
• Package Width (cm): 32.00 cm
• Package Width (in): 12.60 in
• Polarity: DC
• Power Source: Hardwired/Plug In
• Primary Colour: Blue
• Primary Material: Metal
• Product Model Number: MIG 182i
• Welding Process: Flux-cored, Inverter, MIG, Wire Feed
