Mastercraft 115V/230V Power Cut 40i Plasma Cutter

Features

• Mastercraft Power Cut 40i Plasma Cutter is capable of cutting a variety of metals
• Advanced plasma cutting torch features Dual Voltage Technology to work in traditional home outlets (115V) or in workshops when more power is required (230V)
• Clean cuts up to 1/8″ / 3mm (115V) and up to 3/8″ / 10mm (230V)
• Sever cuts up to 1/4″ / 6mm (115V), up to 5/8″ / 16m (230V)
• Duty cycle: 35% at 16A (115V), 35% at 40A (230V)

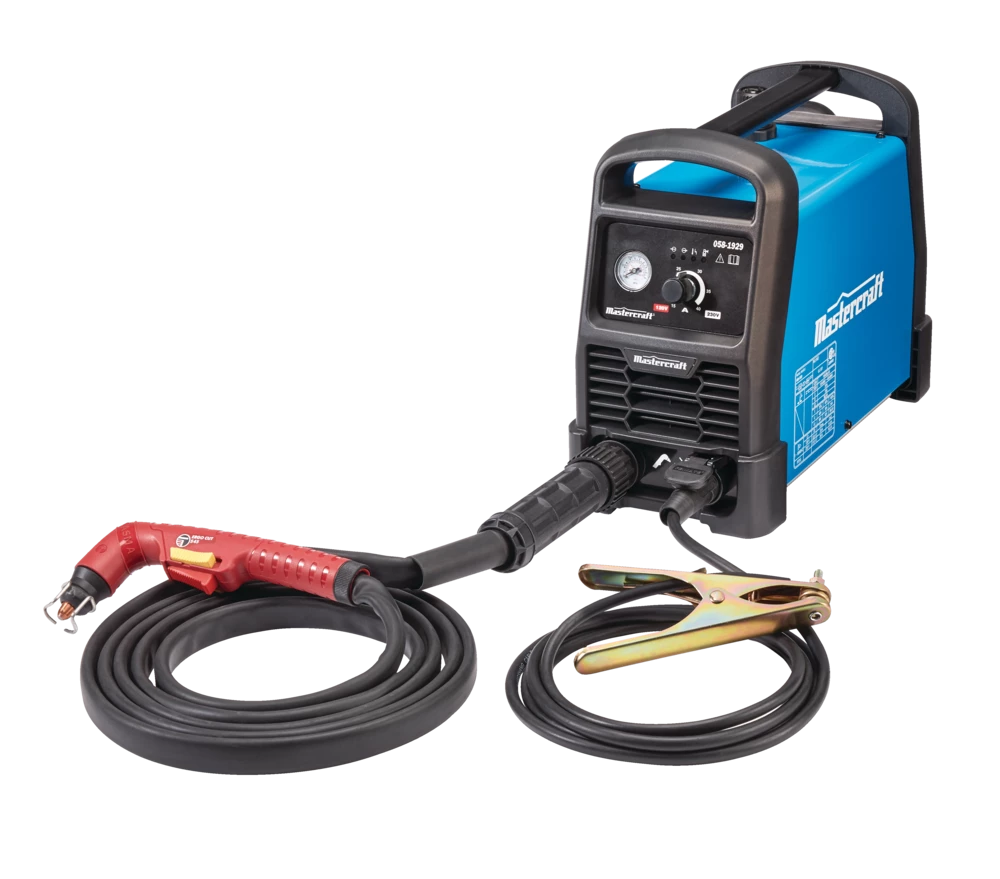

• Includes Mastercraft Plasma Cutter, 10′ (3 m) cutting torch, 10′ (3 m) grounding cable and clamp, 2′ (0.6 m) 15A plug adaptor, (3) electrodes and (3) nozzles
• Replacement kit available and sold separately (Mastercraft Power Cut 40i Plasma Cutter Consumable Kit, CT#: 058-9488)

Specifications

• Accessories List: Nozzles, Other, Tips, Torch
• Advanced Features: Continuous Operation, Versatile welding range
• Assembled Height (cm): 35.00 cm
• Assembled Height (ft): 1.15 ft
• Assembled Height (in): 13.78 in
• Assembled Length (cm): 30.00 cm
• Assembled Length (ft): 0.98 ft
• Assembled Length (in): 11.81 in
• Assembled Weight (kg): 10.45 kg
• Assembled Weight (lb): 23.04 lb
• Assembled Width (cm): 44.00 cm
• Assembled Width (ft): 1.44 ft
• Assembled Width (in): 17.322844 in
• Assembled Width (mm): 440.00 mm
• Certifications: CSA Listed
• Display Type: Analogue
• Duty Cycle: 35
• Input Hertz (Hz): 60 Hz
• Input Phase: 1
• Input Voltage (V): 230 V
• Maximum Temperature (°C): 55.00 °C
• Maximum Temperature (°F): 131.00 °F
• Maximum Weldable Thickness (in): 0.63 in
• Maximum Weldable Thickness (mm): 16.00 mm
• Minimum Temperature (°C): -20.00 °C
• Minimum Temperature (°F): -4.00 °F
• Minimum Weldable Thickness (in): 0.00 in
• Minimum Weldable Thickness (mm): 0.00 mm
• Number of Pieces: 1
• Output Amperage (amps): 40 A
• Output Voltage (V): 96 V
• Package Depth (cm): 43.00 cm
• Package Depth (in): 16.93 in
• Package Height (cm): 34.50 cm
• Package Height (in): 13.58 in
• Package Weight (kg): 10.45 kg
• Package Weight (lb): 23.04 lb
• Package Width (cm): 23.00 cm
• Package Width (in): 9.06 in
• Polarity: DC
• Power Source: Hardwired/Plug In
• Primary Colour: Blue
• Primary Material: Metal
• Product Model Number: CUT 40KD
• Welding Process: Inverter, Plasma Cutter
