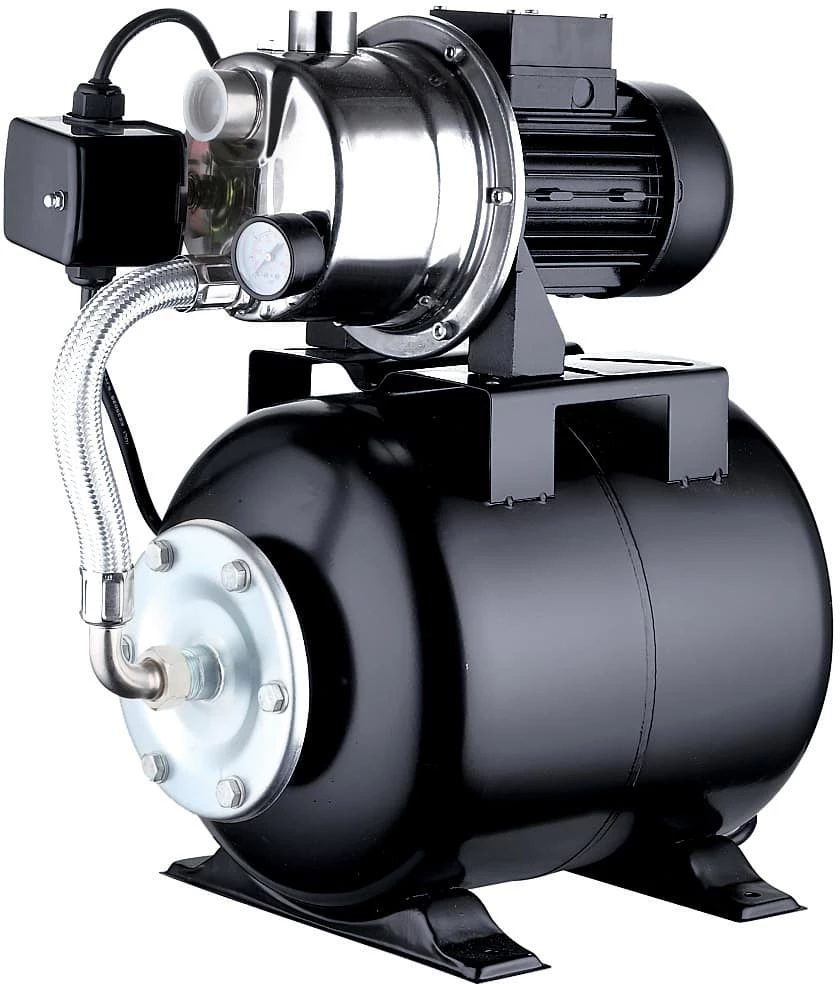

Mastercraft 3/4 HP Stainless Steel Shallow Well Jet Pump With 6-Gallon Tank

Features

• Mastercraft 3/4 HP Stainless Steel Shallow Well Jet Pump with 6-Gallon Tank is designed for use on shallow well applications where the well is 25′ (7.62 m) deep or less
• Durable stainless steel volute
• Reinforced thermoplastic impeller and diffuser for corrosion resistance
• Built-in thermal overload protector
• Carbon/ceramic mechanical seal
• Permanent split capacitor motor
• 1″ (2.5 cm) NPT discharge
• System comes complete with pressure pump switch, pressure gauge, and a pressure tank
• Tank Capacity: 22.7 L (6 US gal)

Specifications

• Accessories List: No Accessories Included
• Advanced Features: No Advanced Features
• Assembled Height (cm): 51.05 cm
• Assembled Height (ft): 1.68 ft
• Assembled Height (in): 20.10 in
• Assembled Length (cm): 45.47 cm
• Assembled Length (ft): 1.49 ft
• Assembled Length (in): 17.90 in
• Assembled Weight (kg): 12.47 kg
• Assembled Weight (lb): 27.5 lb
• Assembled Width (cm): 29.46 cm
• Assembled Width (in): 11.60 in
• Assembled Width (mm): 294.64 mm
• Batteries Required Quantity: 0
• Certifications: CSA Listed
• Flow Rate (gal/min): 15.83 gal (US)/min
• Flow Rate (l/min): 59.93 l/min
• Impeller Material: Thermoplastic
• Maximum Operating Temperature (°C): 35.00 °C
• Maximum Operating Temperature (°F): 95.00 °F
• Outlet Valve Type: NPT
• Package Depth (cm): 24.13 cm
• Package Depth (in): 9.50 in
• Package Height (cm): 15.24 cm
• Package Height (in): 6.00 in
• Package Weight (kg): 2.60 kg
• Package Weight (lb): 5.73 lb
• Package Width (cm): 24.13 cm
• Package Width (in): 9.50 in
• Power Source(s): Electric
• Primary Material: Stainless Steel
• Pump type: Well Pump
• Switch Type: Electric
