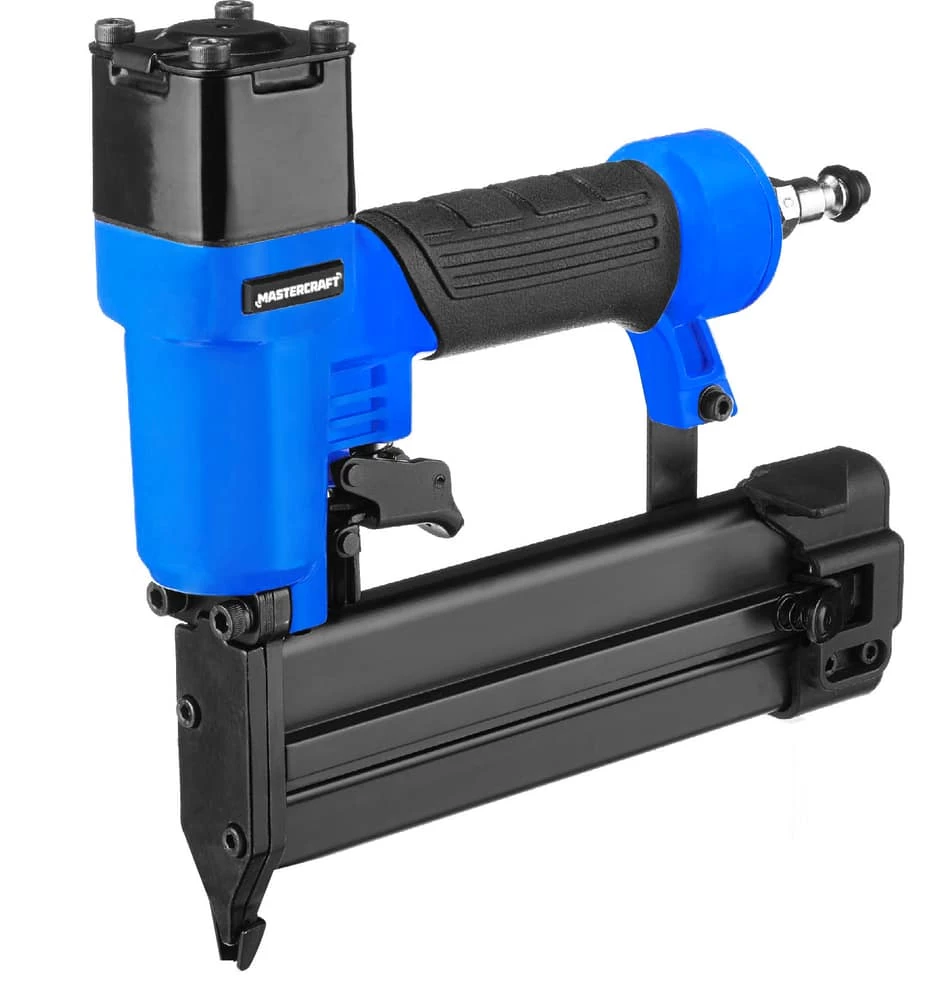

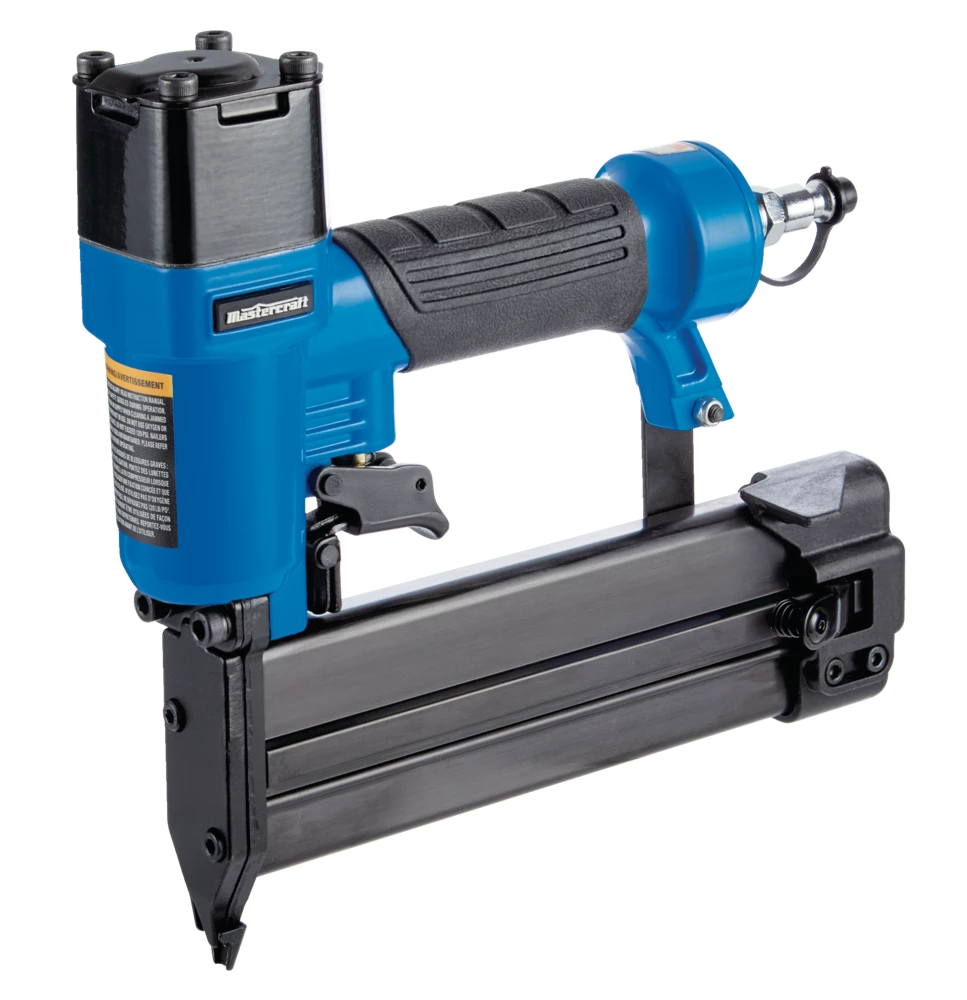

Mastercraft Lightweight Pneumatic Pin Nailer

Features

• Mastercraft Pin Nailer is ideal for use in furniture and cabinet assembly, upholstery projects, and hobby/craft projects
• Rubber grip handle for reducing the fatigue of operator
• Strong and lightweight die-cast aluminum body for easy one-handed operation
• Edged nosepiece reduces jamming
• One tool drives finish nails and pin nails
• Includes: 2 hex wrenches and bottle of oil
• Weight: 2.64 lbs (1.2 kg)
• Air consumption: 0.01 CF/cycle @ 90 PSI
• Nail capacity: 100 pcs
• Max pressure: 120 psi (8.3 bar)
• Operating pressure: 70-110 psi (4.8 -7.5 bar)
• Nail size range: 1/2” to 1-1/2″ (23-gauge)
• Dimensions: 8.2 x 8.1 x 1.7″ (21 x 20.6 x 4.5 cm)

Specifications

• Accessories List: Oil, Other, Hard Case
• Advanced Features: No Advanced Features
• Air Inlet Size: 1/4″
• Assembled Height (cm): 21.00 cm
• Assembled Height (ft): 0.69 ft
• Assembled Height (in): 8.27 in
• Assembled Length (cm): 20.60 cm
• Assembled Length (ft): 0.68 ft
• Assembled Length (in): 8.11 in
• Assembled Weight (kg): 1.20 kg
• Assembled Weight (lb): 2.65 lb
• Assembled Width (cm): 4.50 cm
• Assembled Width (in): 1.77 in
• Assembled Width (mm): 45.00 mm
• Calibre (in): 0.00 in
• Calibre (mm): 0.00 mm
• Certifications: No Certifications
• Fastening Angle (degree): 0 °
• Gauge: 23 ga
• Maximum Fastener Length (cm): 40.00 cm
• Maximum Fastener Length (in): 15.75 in
• Maximum Pressure (psi): 120 lb/in²
• Minimum Fastener Length (cm): 12.00 cm
• Minimum Fastener Length (in): 4.72 in
• Minimum Fastener Length (mm): 120.00 mm
• Nail/Staple/Brad Capacity: 100
• Noise Level (dB): 95.1 dB
• Number of Pieces: 1
• Package Depth (cm): 28.90 cm
• Package Depth (in): 11.38 in
• Package Height (cm): 5.60 cm
• Package Height (in): 2.20 in
• Package Weight (kg): 2.20 kg
• Package Weight (lb): 4.85 lb
• Package Width (cm): 22.00 cm
• Package Width (in): 8.66 in
• Primary Colour: Blue
• Primary Material: Aluminum
• Product Model Number: H640
• Required Air Flow (m³/min): 28.90 m³/min
• Strip or Coil: Strip
• Suggested Air Hose Size: 3/8″
• Tool Type: Brad Nailer
