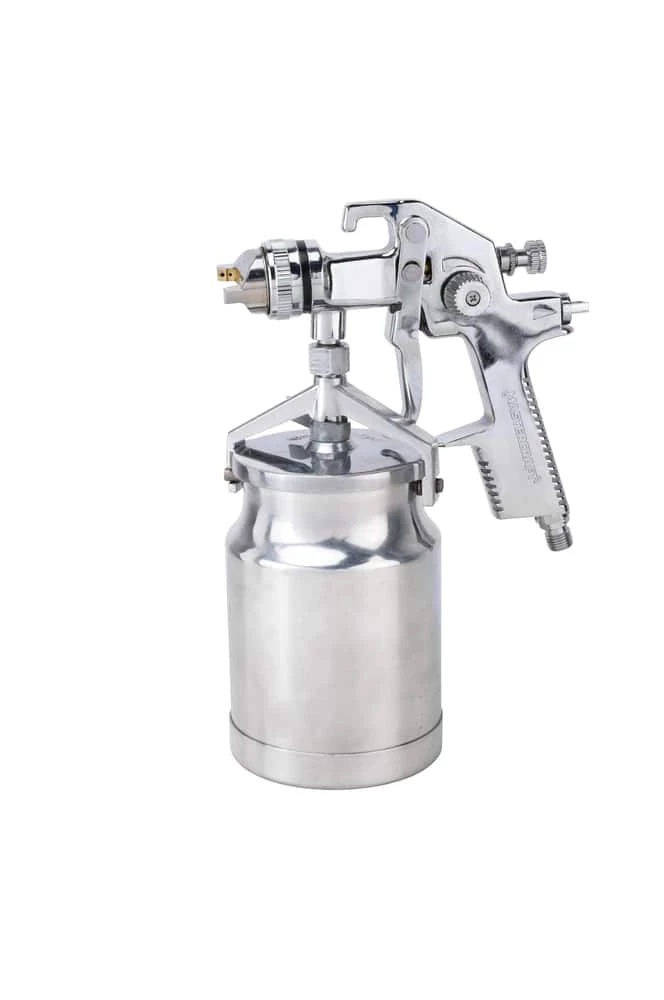

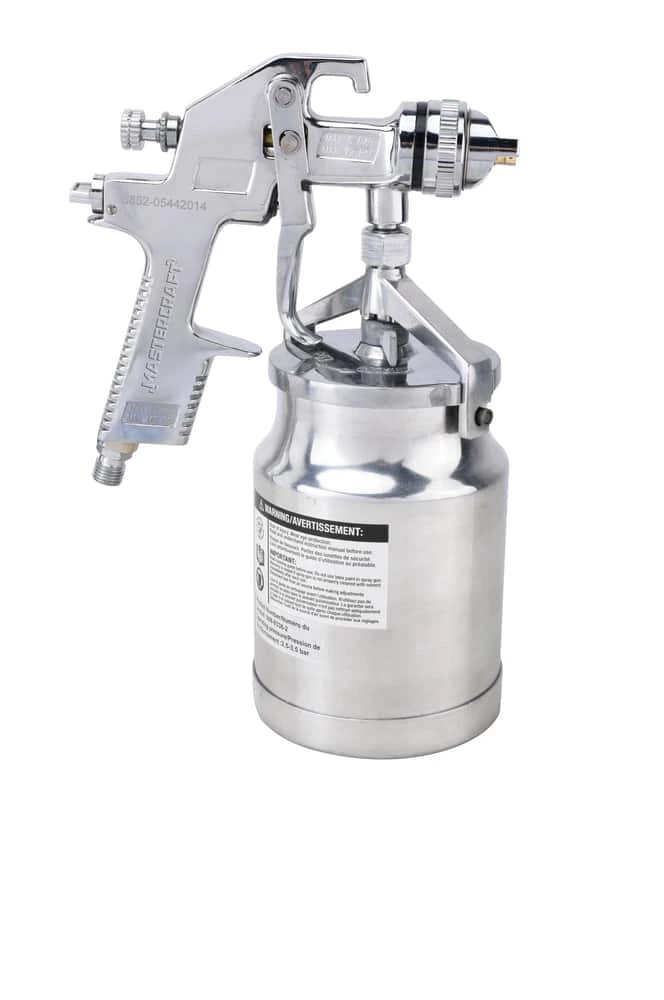

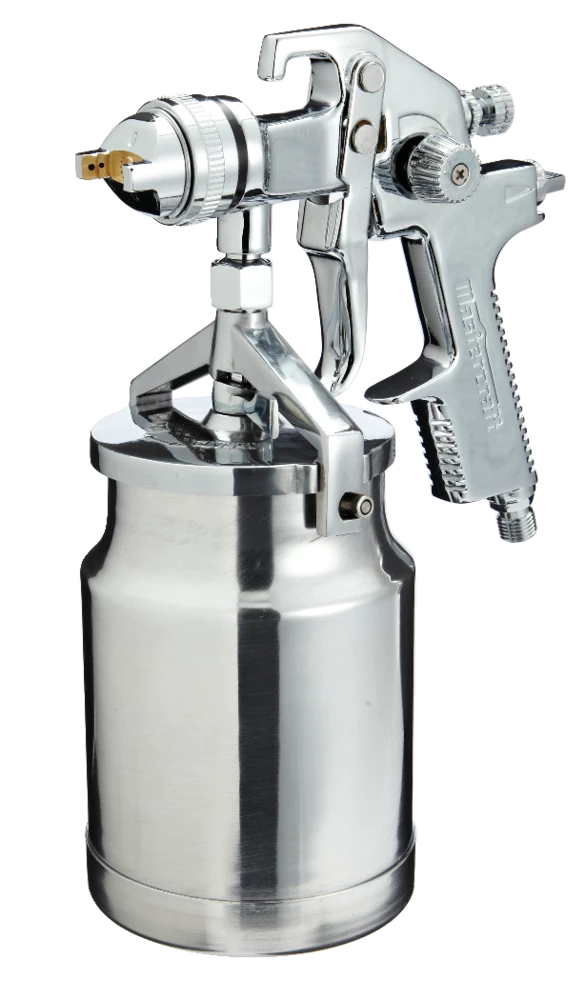

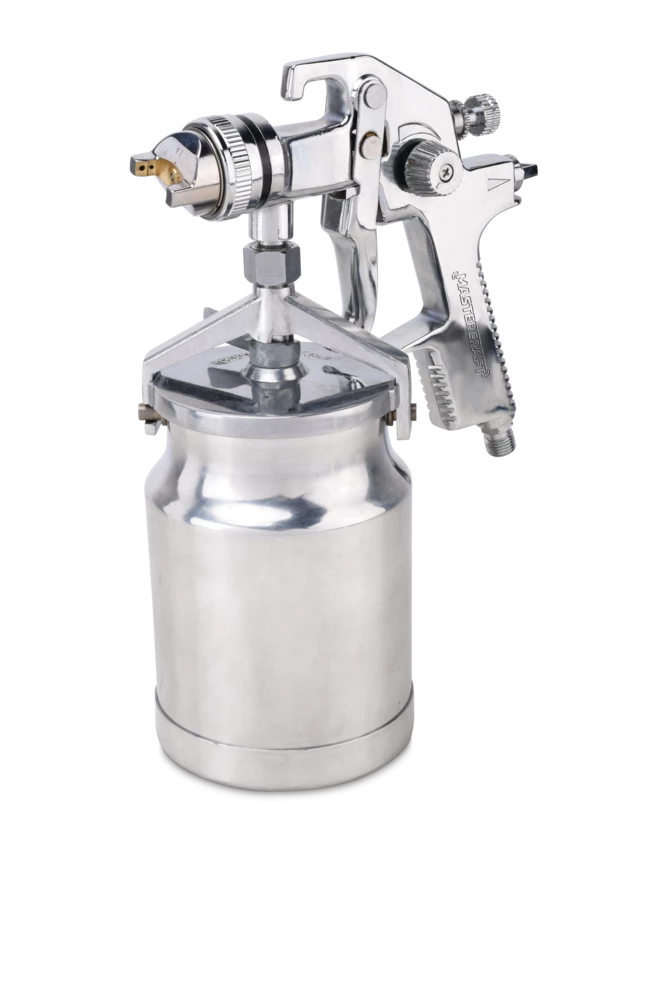

Mastercraft Pneumatic Air Suction Paint Sprayer Gun For Craft & Industry, 1.4mm

Features

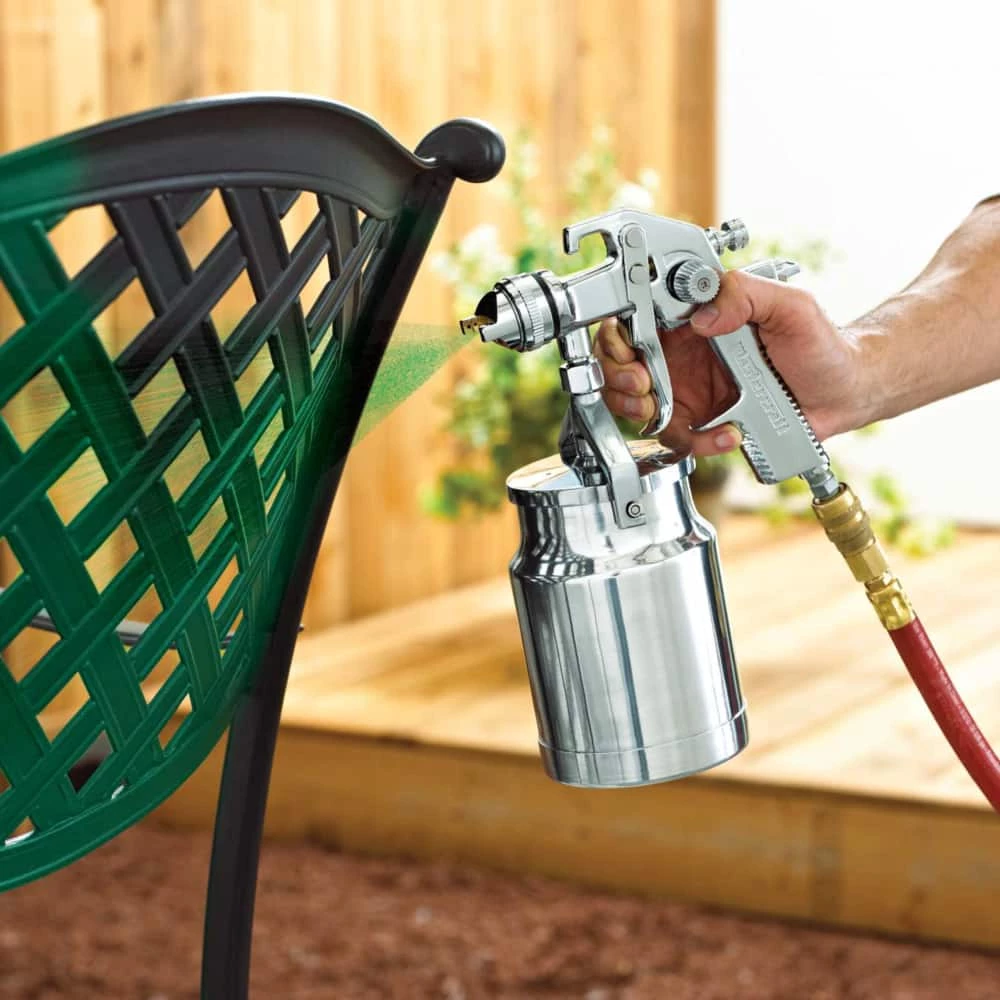

• Mastercraft Air Powered Suction Spray Gun is used as an all around paint spray gun for craft and industry
• Extremely flexible spray pressure, paint pattern, and fluid inlet adjustment for a consistent paint job in all applications
• Stainless steel needle and nozzle provides excellent corrosion resistance
• Perfect ergonomics for fatigue-free work
• Anti-drip canister
• Gun nozzle size: 1.4 mm (0.14 cm)
• Operating pressure: 2.5 – 3.5 bar
• Requires a CFM of 3.9 at 40 PSI
• Paint capacity of 1 L
• Includes clean kit and wrench
• Maximum material temperature: 50℃
• Air hose: 3/8”
• Dimensions: 7″ x 10.6″ x 4.7″ (18 x 27 x 12 cm)
• Weight: 2.6 lbs (1.2 kg)

Specifications

• Accessories List: Other
• Air Inlet Size: 1/4″
• Assembled Height (cm): 15.00 cm
• Assembled Height (ft): 0.49 ft
• Assembled Height (in): 5.91 in
• Assembled Length (cm): 35.00 cm
• Assembled Length (ft): 1.15 ft
• Assembled Length (in): 13.78 in
• Assembled Weight (kg): 1.20 kg
• Assembled Weight (lb): 2.65 lb
• Assembled Width (cm): 10.00 cm
• Assembled Width (in): 3.94 in
• Assembled Width (mm): 100.00 mm
• Certifications: No Certifications
• Fan Size (cm): 230.00 cm
• Fan Size (in): 90.55 in
• Fluid Delivery Type: Pressure
• Maximum Pressure (psi): 50 lb/in²
• Noise Level (dB): 66.7 dB
• Nozzle Diameter (mm): 1.80 mm
• Nozzle Diameter (po): 0.07 in
• Number of Spray Settings: 1
• Package Depth (cm): 22.50 cm
• Package Depth (in): 8.86 in
• Package Height (cm): 13.00 cm
• Package Height (in): 5.12 in
• Package Weight (kg): 1.50 kg
• Package Weight (lb): 3.31 lb
• Package Width (cm): 15.20 cm
• Package Width (in): 5.98 in
• Primary Colour: Silver
• Primary Material: Aluminum
• Product Model Number: AS1005
• Product Use(s): Medium Materials, Thin Materials
• Required Air Flow (m³/min): 40.00 m³/min
• Spray Gun Feed Type: Siphon Feed
• Spray Gun Type: HVLP
• Suggested Air Hose Size: 3/8″
• Tank Capacity (gal): 264.17 gal (US)
• Tank Capacity (l): 1000.00 l
• Tip Size (in): 0.07 in
• Tip Size (mm): 1.80 mm
